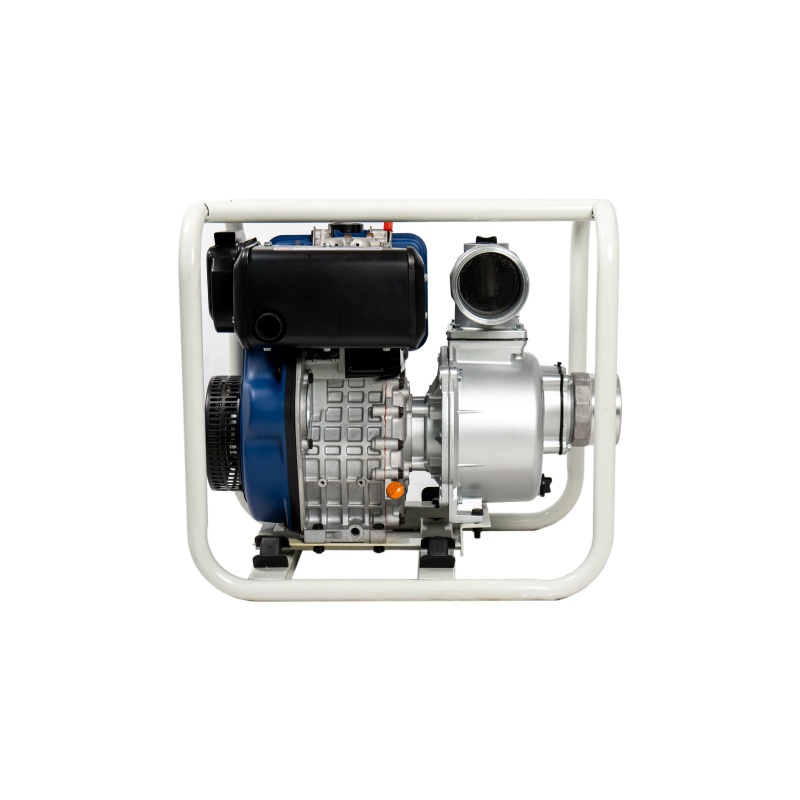

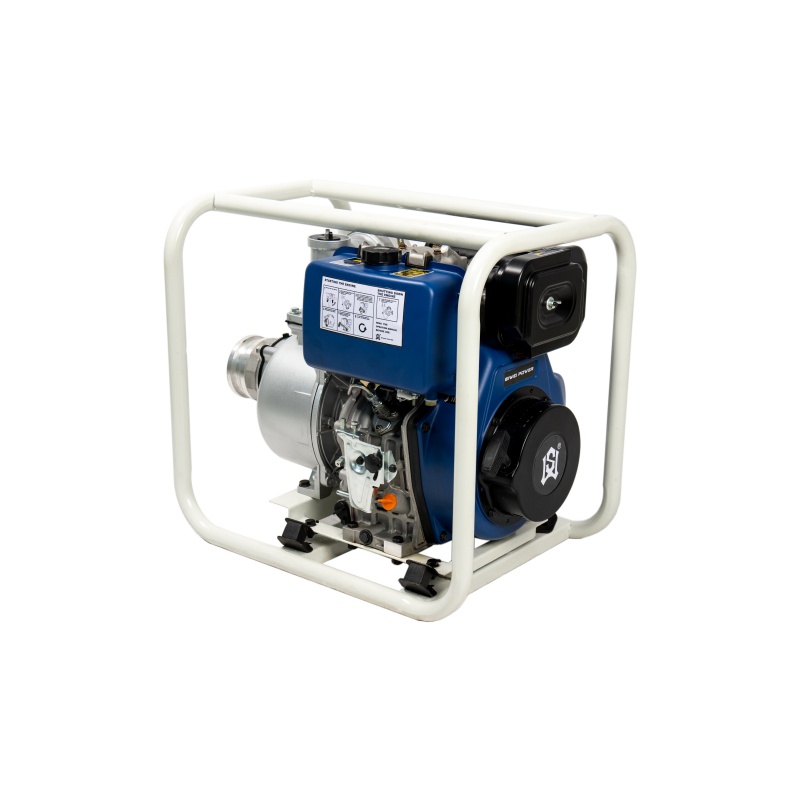

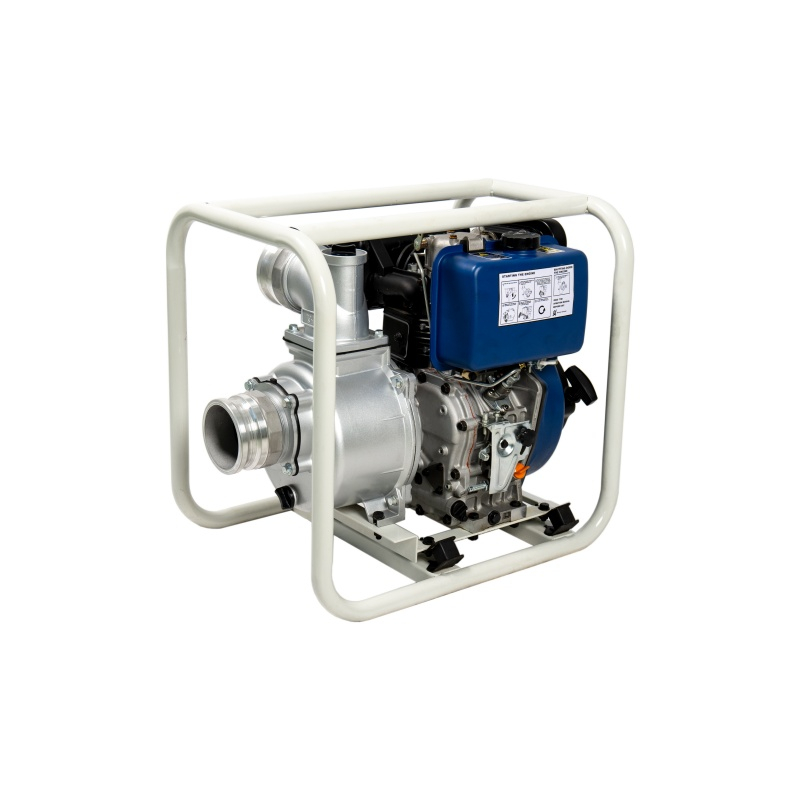

P100 diesel water pump clean water recoil start

4inch, 1333L/min

Availability:

Quantity:



Inquire Add to Basket

Model:
P100
Brand:
Siwei Power

Diesel pump Diesel water pump clean water pump diesel engine pump manual start 4 inch pump

Product Description

Product Advantage

Siwei Power P series diesel pumps use SW series air-cooled engines with strong power. The P series includes clean water pumps, high-pressure pumps, mud pumps, and sewage pumps, which can be widely used in agricultural and garden irrigation, aquaculture water supply and drainage, construction site sewage treatment, flood control and drainage etc.

Product Parameter

Model		P50	P80	P100	P150
Inlet/Outlet diameter	mm	50	80	100	150
Inlet/Outlet diameter	inch	2	3	4	6
Max. flow rate	m³/h	30	50	80	135
Max. flow rate	L/min	500	833	1333	2250
Max. suction head	m	7	7	7	6
Total head	m	25	28	22	20
Passable object diameter	mm	5	6	6	6
Starting system		Recoil+Electric
Engine model		SW173F	SW178F	SW186FA	SW192F
Rated rotational speed	rpm	3600
Rated output power	kW	3.5	4.0	6.5	7.5
Fuel type		Diesel 0#(Summer), -10#(Winter), -35#(Chilliness)
Fuel capacity	L	2.5	3.5	12.5	12.5
Lube oil type		SAE15W40(Summer), SAE10W30(Winter)
Lube oil capacity	L	0.75	1.1	1.65	1.65
Net weight	kg	36	57	90	114
Package size(LWH)	mm	490410530	580480570	650550720	750560780
20GP loading quantity	PCS	220	108	96	54
