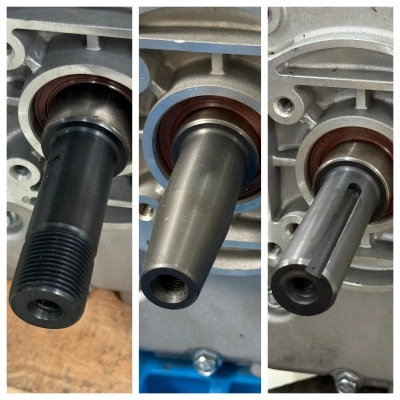

How To Choose PTO Shaft Types (Keyway, Taper, Thread, Spline)?

1. Parallel Keyed Shaft

· Features: A cylindrical shaft with one or two flat, machined keyways. A matching key locks the hub to the shaft to transmit torque. Uses a standard retaining bolt.

· Applications: The most common and versatile type. Used for pumps, gearboxes, and various industrial machinery.

2. Tapered Shaft

· Features: The shaft diameter decreases (tapers) towards the end. Provides a self-locking, concentric fit and excellent alignment when the mating part is driven on.

· Applications: Ideal for applications requiring high concentricity and a secure fit. Commonly used for generators to ensure smooth, vibration-free operation.

3. Threaded Shaft (PTO)

· Features: The shaft end has a fine-pitch external thread. The driven equipment (e.g., a pump impeller) screws directly onto the shaft.

· Applications: Simple, direct connection. Primarily used for water pumps, offering a straightforward and compact design.

4. Splined Shaft

· Features: Has multiple axial grooves (splines) machined around the shaft's circumference. Provides the highest torque capacity and allows for some axial movement.

· Applications: For heavy-duty, high-torque applications. Used in tractors, powerful hydraulic pumps, and specialized mobile machinery.
